How does an LCD writing tablet work?

You picked up an LCD writing tablet. You wrote on it. Then you pressed a button and it all disappeared. How does that actually work?

An LCD writing tablet works by using pressure to rearrange liquid crystals inside a screen. This blocks or reflects light and creates visible marks. When you erase, a small electric pulse resets the crystals. No ink, no battery power for writing — just physics.

I find this technology genuinely fascinating. Most people use these tablets every day without thinking twice. But once you understand what is happening inside that thin screen, you start to see why so many schools, offices, and homes love them. I have spent a lot of time at the GY-industries factory in Shenzhen watching these tablets being made. Let me walk you through exactly how they work, layer by layer.

The Screen Itself: What Is Actually Inside an LCD Writing Tablet?

You hold a tablet and it feels simple. But crack one open and you find a surprisingly clever stack of layers working together.

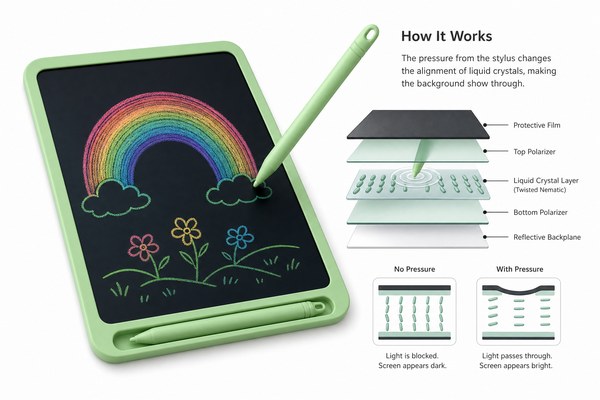

An LCD writing tablet screen has several thin layers. The key ones are two plastic sheets with liquid crystal material sandwiched between them. Pressure from a stylus disturbs these crystals. That disturbance is what you see as a line or mark on the surface.

I remember the first time I visited the GY-industries production floor in Shenzhen. I watched a technician hold up a raw LCD panel against a light. You could see the layers clearly — almost like pages in a very thin book. The liquid crystal layer is incredibly thin. It sits between two protective plastic films. One film is the writing surface you touch. The other is the backing layer. Between them, the liquid crystals sit in a relaxed, flat state. That flat state means light passes through evenly and the screen looks clear. When a stylus or even a fingernail presses down, those crystals are physically pushed out of alignment. That misalignment scatters light differently. Your eyes see that as a dark or coloured mark. It is pressure writing in its purest form.

LCD Layer Breakdown

The Writing and Erasing Mechanism: How Do Marks Appear and Disappear?

Writing makes sense once you know about the crystals. But the erase function surprises almost everyone who first learns about it.

Writing happens with pressure alone. No electricity is needed to make a mark. Erasing is different. A small electrical charge from the battery passes through the LCD layer. This pulse resets all the liquid crystals back to their flat starting position. The screen goes clear again instantly.

I have shown this to buyers visiting the GY-industries showroom. I ask them to write something. Then I ask them to guess how erasing works. Most think a magnet is involved. Some think it heats up. Almost nobody guesses electricity on the first try. When I explain the electric reset pulse, I can see the moment it clicks. The erase button connects to a small circuit inside the tablet. That circuit sends a uniform voltage across the entire LCD panel in one go. Every crystal resets at the same time. That is why the whole screen clears instantly. There is no partial erase. GY-industries designs these circuits carefully. Our tablets meet CE, RoHS, and CPC safety certifications, which means the electrical components inside are rigorously tested.

Writing vs. Erasing Compared

The Battery, Lock Button, and Smart Design Features

People worry about batteries running out mid-use. I hear this question a lot from teachers and parents.

The battery in an LCD writing tablet only powers the erase function. It is not used for writing or for keeping marks visible. This is why the battery lasts for tens of thousands of erases. Some GY-industries models use replaceable coin cell batteries. Others use built-in rechargeable ones.

I have tested many LCD writing tablets over the years at GY-industries. One thing I always check personally is the lock button. It is a small but important feature. The lock button prevents accidental erasing. I once gave a tablet to my young nephew. Within ten minutes he had erased his drawing three times by sitting on the erase button. A lock button solves that completely. Our OEM and ODM clients often ask us to customise this feature. Some want a physical sliding lock. Others want a soft-press hold combination. Because GY-industries operates its own factory in Shenzhen, we can adjust these design details quickly. According to HowStuffWorks, LCD technology in general is one of the most energy-efficient display methods available. LCD writing tablets take that efficiency even further because most functions need zero power at all.

Common Battery and Feature Options

Conclusion

LCD writing tablets are simple, clever, and surprisingly low-tech under the hood. I hope this helped. Want to learn more or build your own branded tablet? Contact GY-industries today and let’s talk.
