What material is the screen of an LCD writing tablet made of?

You pick up an LCD writing tablet. You wonder what is inside that thin screen. Most people have no idea what makes it work.

The screen of an LCD writing tablet is made of a pressure-sensitive liquid crystal layer sandwiched between two thin plastic or glass panels. When you press on it, the crystals change and hold a visible mark. This is what creates the lines you see when you write.

I have spent years working closely with LCD writing tablet production at our Shenzhen factory. I want to walk you through exactly what goes into that screen. Understanding the materials helps you choose a better product. It also helps you understand why some tablets last longer than others. Some materials are cheap and break fast. Others are tough and reliable. I will show you the difference. By the end of this article, you will know what to look for. Let me break it down layer by layer.

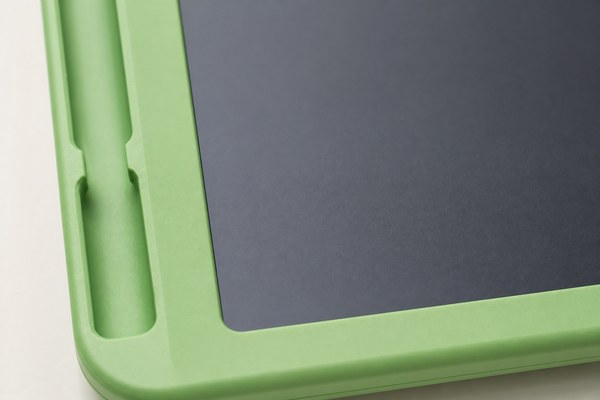

The Top Layer: What You Actually Touch

You press your stylus down and the screen responds. But something has to absorb that pressure first. If the top layer is weak, the screen scratches or cracks quickly.

The top layer of an LCD writing tablet screen is usually made of a thin, flexible PET (polyethylene terephthalate) film or a hard polycarbonate panel. PET film is light and flexible. Polycarbonate is thicker and more impact-resistant. Both protect the liquid crystal layer underneath.

I remember visiting the production line at our GY-industries factory in Shenzhen for the first time. I watched the top film being applied to each screen panel. The PET film looked almost like kitchen wrap. It was incredibly thin. But I could see how it flexed perfectly under pressure without cracking. On tablets made for kids, I noticed we used a thicker polycarbonate layer instead. That makes a big difference. Children press hard. They drop things. A soft PET film alone would not survive a school bag. I have seen cheaper tablets come in with a flimsy top layer that scratches after one week. Our OEM clients always ask us about this layer first. It is the first thing their customers touch. It matters more than people think.

Top Layer Material Comparison

The Middle Layer: Where the Magic Happens

You can have the best top layer in the world. But if the middle layer fails, nothing works. This is the heart of the screen.

The middle layer contains liquid crystals suspended in a microcapsule or thin-film structure. These crystals align when pressure is applied. They stay in that position until an electrical charge resets them. This layer is why the writing appears and why the erase button works so cleanly.

I find this layer the most fascinating part of the whole tablet. I once asked one of our engineers in Shenzhen to show me a cross-section of the screen under magnification. You could actually see the tiny capsules holding the liquid crystals. They looked like little bubbles packed tightly together. When I pressed a stylus onto the sample, the crystals flipped. The mark appeared instantly. Then the engineer sent a small voltage through the panel. Every crystal reset at once. The screen went blank. That moment made everything click for me. This is why LCD writing tablets are so popular. They are simple but brilliant. At GY-industries, we source this layer carefully. The quality of the crystal film directly affects write feel and erase life. Liquid crystal technology has been developed over decades and keeps improving every year.

Liquid Crystal Layer Specifications

The Bottom Layer: The Support Structure

The top and middle layers get all the attention. But without a solid base, the whole screen buckles. Many manufacturers skip quality here to save money.

The bottom layer of an LCD writing tablet screen is typically a rigid backing made from ABS plastic, a thin metal plate, or a firm polycarbonate sheet. This layer keeps the screen flat. It supports the pressure from writing. It also holds the electronic components in place underneath.

I have held tablets where the backing was clearly too thin. You press down and the whole screen bends like a piece of paper. That bending damages the crystal layer over time. At GY-industries, I have personally reviewed our quality checks for this layer. We use a firm ABS plastic backing on most of our standard OEM tablet models. For clients who need a premium feel, we offer a thin metal reinforcement plate. It adds very little weight. But it completely changes how the tablet feels in your hand. I showed two samples to a European client visiting our Shenzhen facility last year. He picked up the metal-reinforced version and said it felt like a real product. That reaction told me everything. Our tablets carry CE, RoHS, and CPC certifications. Those standards require material safety and durability. The backing layer is always part of that review. You can learn more about our OEM and ODM service options here.

Bottom Layer Backing Options

Conclusion

Now you know what goes into that screen. The right materials make a real difference. Ready to build your own? Contact GY-industries today to get started.
